Tongsheng TSDZ8 48V 750W Torque Sensor Mid Motor DIY Conversion Kit B02N Bluetooth Display

The Advantage of Mid Motor

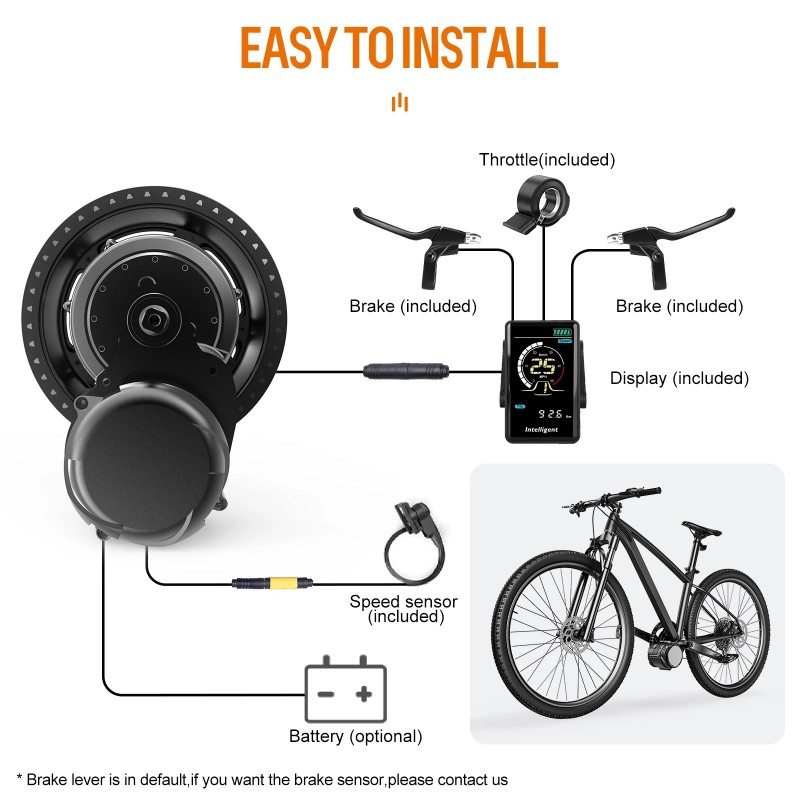

1. Easy to install, suitable for most regular bikes

2. The maximum torque is about 80N.m and the climbing ability is strong

3. Internal control axial torque sensor actual double-sided torque)

4. Small size, beautiful appearance, the weight of about 6.5kg

5. Comfortable ride, high efficiency, low battery consumption, and longer battery life

6. Safe, reliable, and excellent performance PCT/CN2014/091373

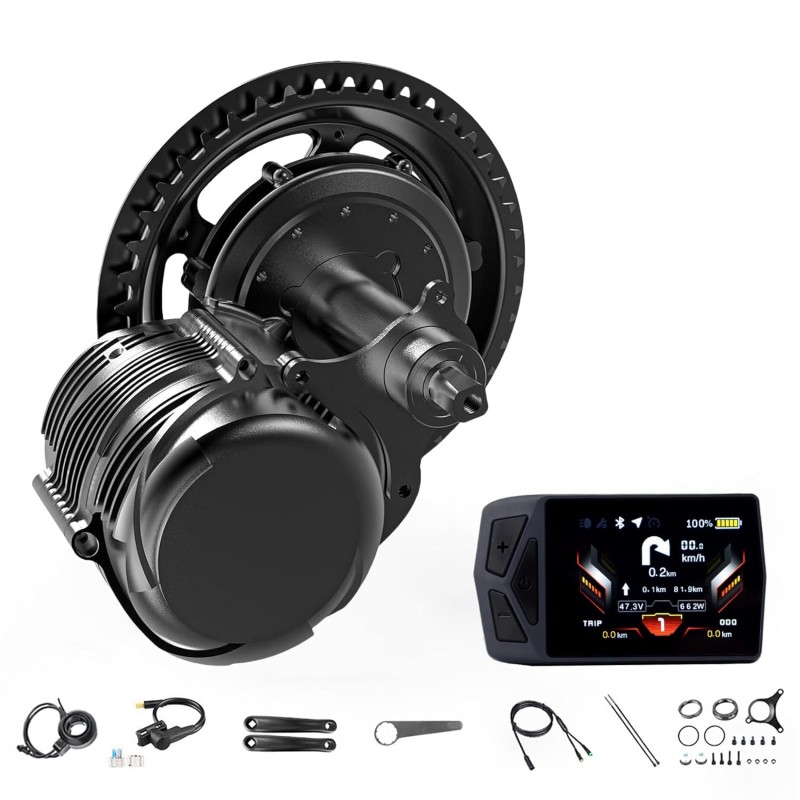

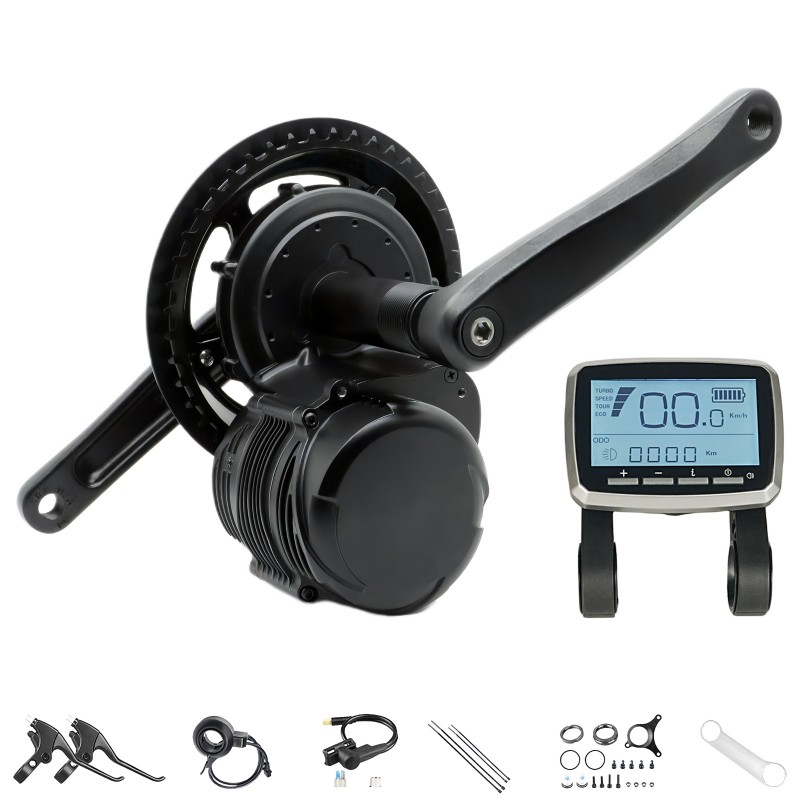

Mid-drive Motor Kit

Voltage: 48Vdc

Power: 750W

Power Assist Ratio: 36%-300%

Speed: 25km/h~55km/h (Speed limit is available)

MAX Torque: 80 N.m

Efficiency: >85

SENSOR: Torque Sensor

Centification: CE/EN 14764/ROHS

Waterproof Grade: IP65

Net Motor Weight: 3.6kg

Package Weight: 5.5-6.0kg

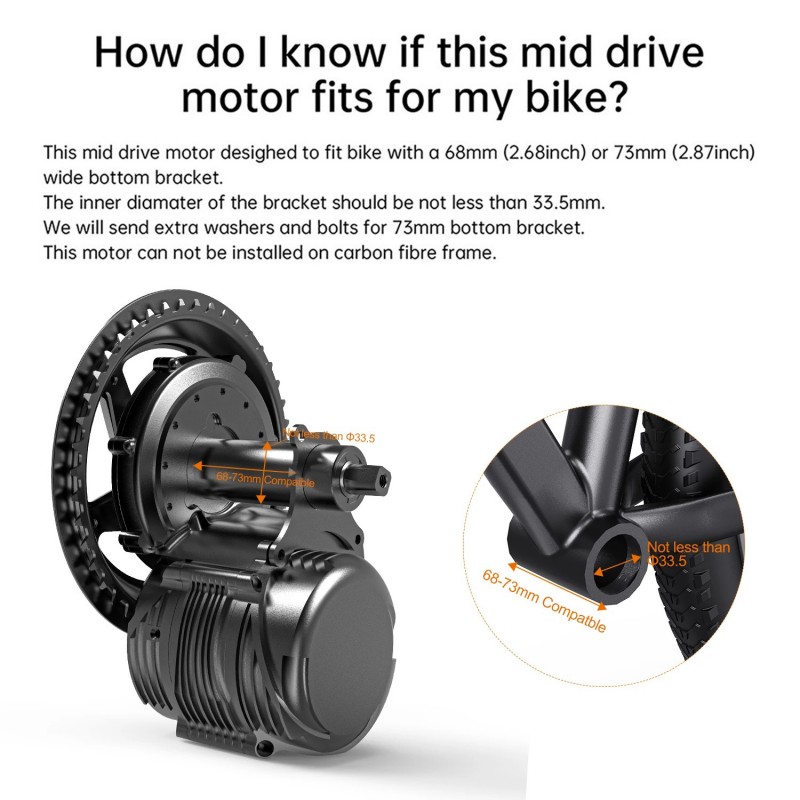

Bracket bottom length: 68/73mm (Standard:JIS)

Motor Operation Temperature: -20℃-45℃

Speed within 25-45km/h can help you ride further
